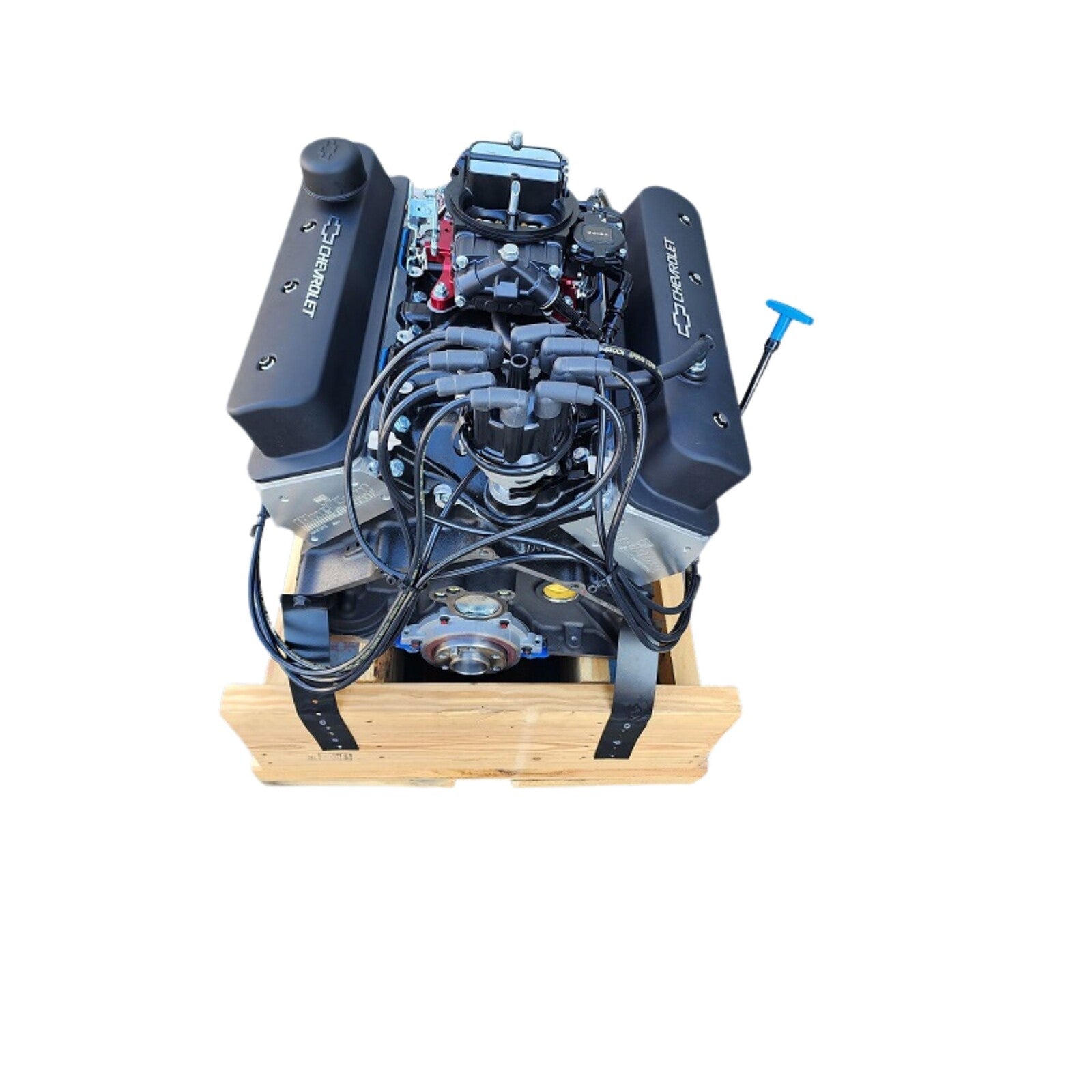

BluePrint Engines 383 CI Stroker Crate Engine | Small Block GM Style | Deluxe Dressed Longblock with Carburetor | Aluminum Heads | Roller Cam

BLACK INTAKE MANIFOLD / CARBURETOR / ROCKER COVERS

• HP and torque : 436 HP / 443 FT LBS
  Compression Ratio: 10.0:1
  Aluminum Heads
  Hydraulic Roller Cam
  Cast Steel Crank
  Hypereutectic Pistons

BLOCK:

• NEW BluePrint Cast Iron Block
  Manufactured and Machined in the USA!
  4-Bolt Main
  4.000" Bore
  1-Piece Rear Main Seal
  Mech fuel pump provision: Yes
  Passenger Side Dipstick
• Drilled and tapped for clutch linkage

ROTATING ASSEMBLY:

• New BluePrint Cast steel crankshaft
  3.750" Stroke
  OEM type 5.700" connecting rods w/ 150,000 psi bolts
  Hypereutectic pistons
  External Front/ External Rear

CYLINDER HEADS:

• BluePrint Aluminum Cylinder Heads - H8002K
  64cc chamber
  2.02" intake/1.60" exhaust valves
  195cc intake/75cc exhaust runners

CAM SPECS:

• Cam Type: Roller
  .544 Intake .555 Exhaust
  230 Intake / 236 Exhaust duration
  @ .050, 110 0 lobe separation angle

IGNITION TIMING:

• 34 Degrees Total at 3500 RPM

ALSO INCLUDES:

• Valve covers
  Harmonic balancer
  Spark plugs
  Spark plug wires
  Standard Rotation Long Style Water Pump
  Fuel Pump
  Oil pan
  Timing cover
  Aluminum Intake Manifold *Will not clear a stock Corvette hood. Please call for special build options
  HEI distributor
  Edelbrock 750cfm Carburetor
  Dyno tested and shipped with results
