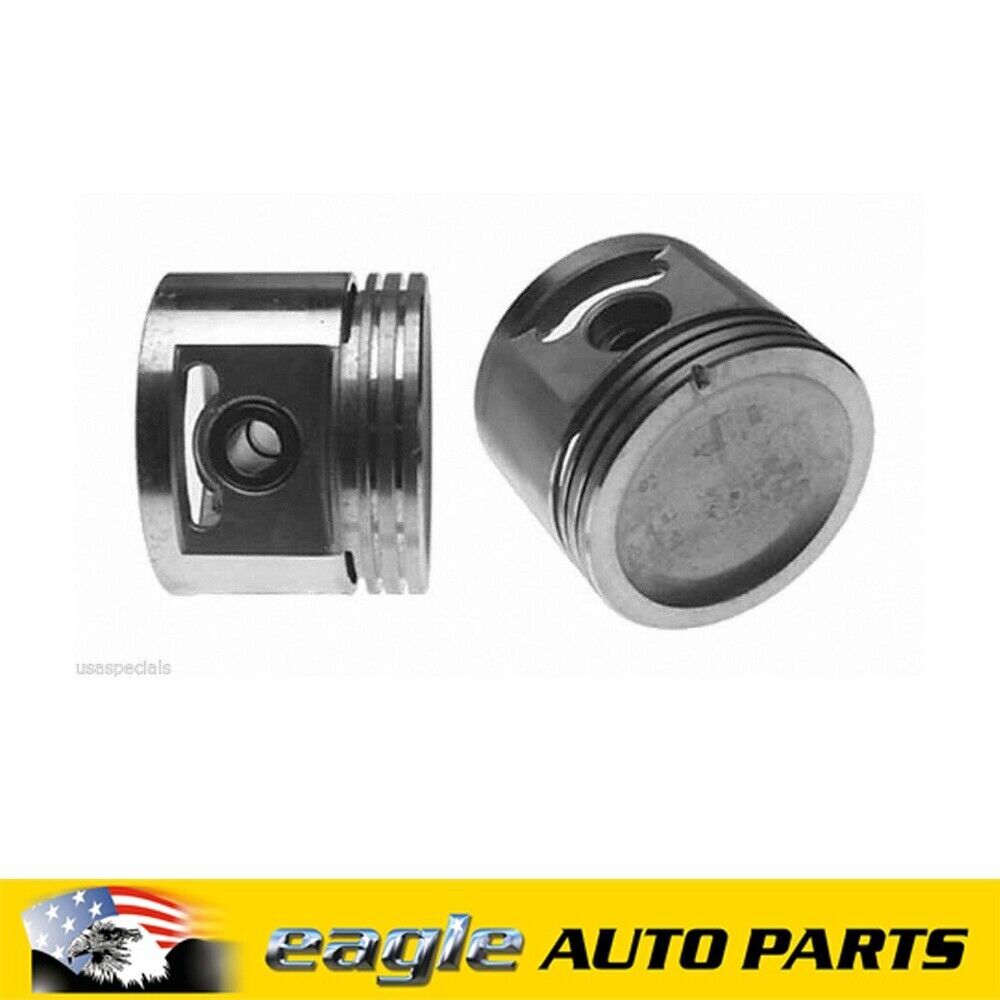

FORD 6.9LT V8 DIESEL 1983 - 1987 PISTON SET STD BORE
Specifications
Related Part Number 1:
41333
Material:
Aluminum
Casting Number:
101L26
Maximum Oversize:
0.060IN
Bore Diameter:
4.000"101.60MM
Piston Length:
3.450"87.63MM
Piston Skirt Clearance:
.005"0.13MM
Measure Skirt Clearance At:
1.00" Up from bottom of skirt
Piston Pin Diameter:
1.110"28.194MM
Pin Hole Location:
Center

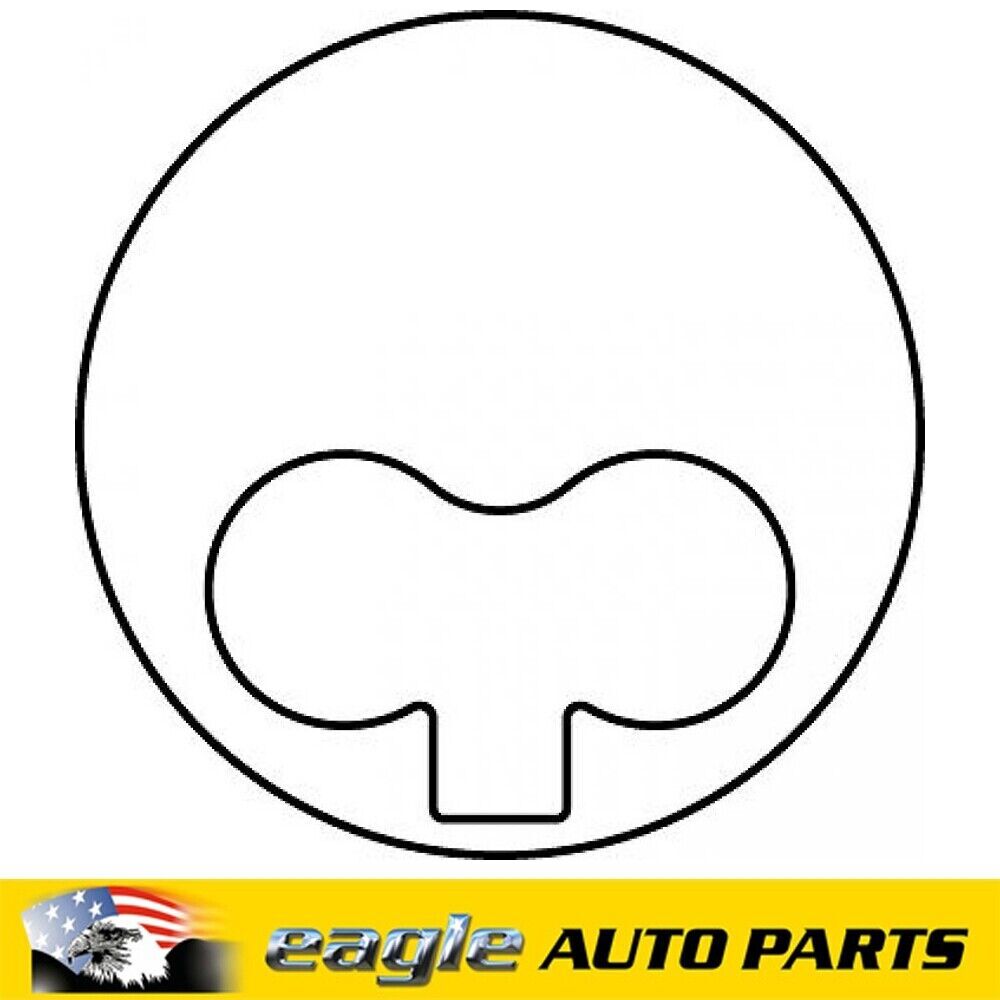

Head Type Description:
Dome
Valve Reliefs:
No
Recess Volume:
6.60
Compression Distance:
1.945"49.40MM
Compression Ratio:
19.7:1
Compression Ring Groove 1:
5/64"2.00MM
Compression Ring Groove 2:
5/64"2.00MM
Oil Ring Groove Width 1:
7/64"2.80MM
Note 1:
Diesel Trk. Destroked .010"
PRICE IS FOR 8 PISTONSPICTURE FOR ILLUSTRATION ONLY.
