Chev GM LS LS1 LS2 LS6 Holley Sniper EFI Fabricated Intake Manifold # 820111-1

Intake Manifolds, Sniper EFI, Fabricated, Cathedral Port, 102mm Throttle Body, 1,800-6,400 RPM, Aluminum, Silver, Chevy, LS, 4.8-6.0L, Each

Cylinder Head Configuration:

Cathedral Port LS1/LS2/LS6

Fuel Injection Style:

Multi-port

Basic Operating RPM Range:

1,800-6,400

Intake Section Included:

Complete

Throttle Body Bore Size:

102mm

Engine Block Deck Height:

Standard deck

Injectors Included:

No

Multi-Port Fuel Rails Included:

Yes

EGR:

No

Aftermarket Fuel Rail Required:

No

Throttle Body Included:

No

Supplemental Bosses Cast-In:

No

Supplemental Bosses Machined:

No

Runners Included:

Yes

Runners Removable:

No

Plenum Material:

Aluminum

Plenum Finish:

Silver anodized

Base Material:

Aluminum

Base Color:

Silver anodized

Remanufactured:

No

Quantity:

Sold individually.

Notes:

Intake manifold height is 6.392 in. front and 5.684 in. rear. Intake has four vacuum ports, three 1/8 in.-28 BSPT and one 1/4 in.-19 BSPT. Includes mounting provisions for MAP sensor at rear of intake.

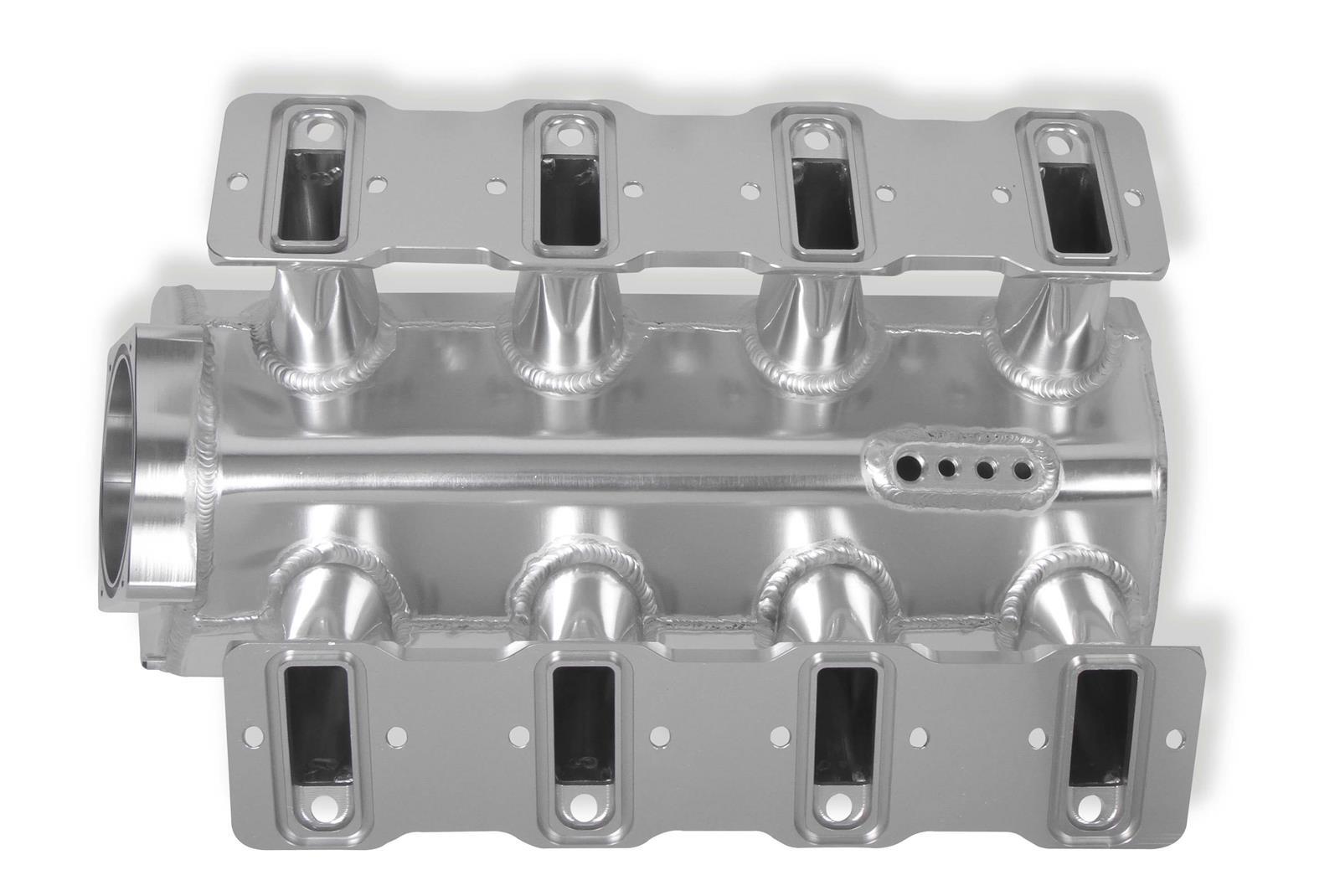

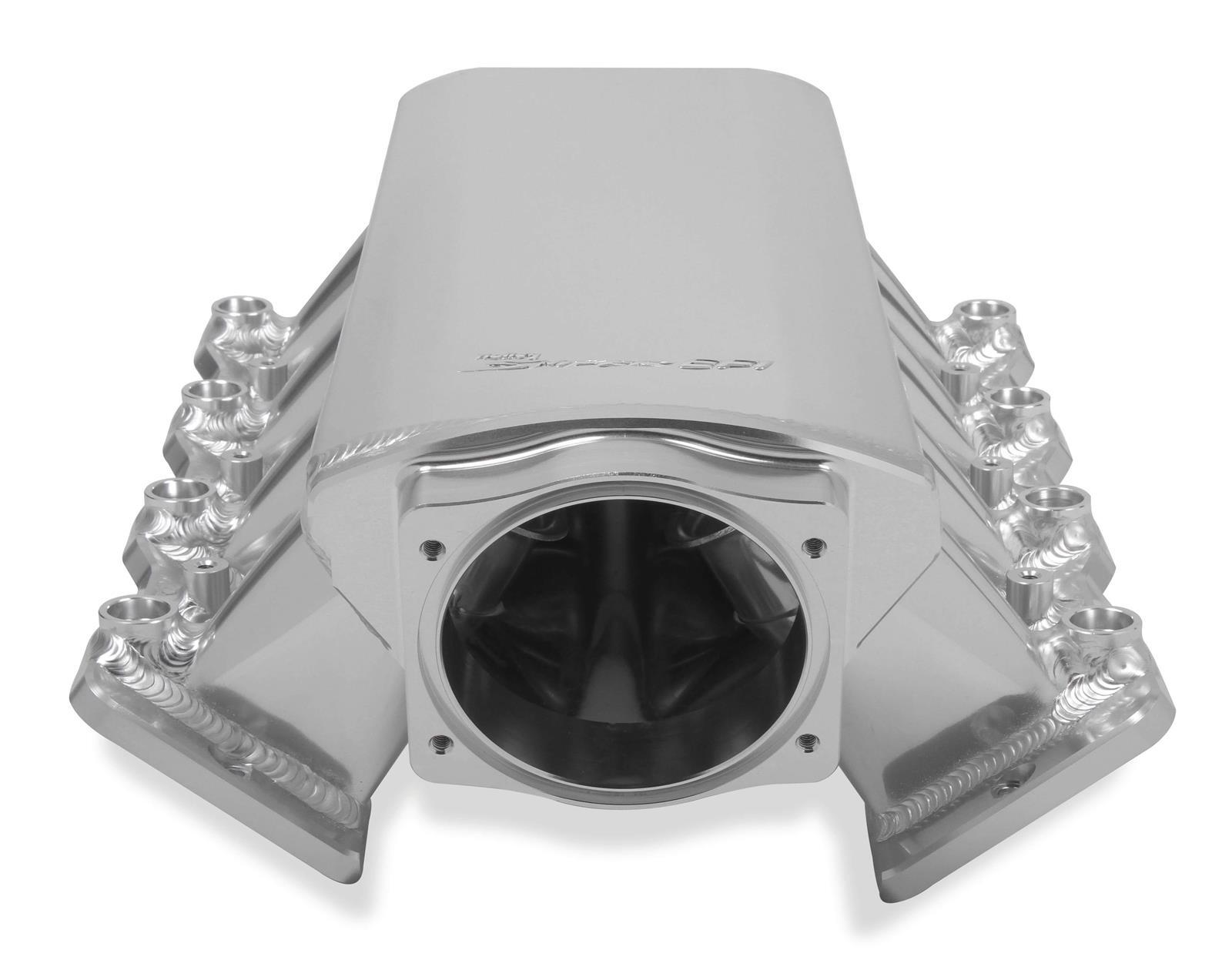

Holley Sniper EFI Fabricated Intakes

Holley Sniper EFI fabricated intake manifolds are budget-friendly and performance laden! These durable Holley hi-ram manifolds feature 3mm (1/8 in.) thick T-6061 sheet aluminum construction with 100 percent TIG welds. The EFI versions have 92mm or 102mm throttle body openings, as well as runners with tapered tops to increase velocity and evenly distribute airflow. They also include 3/8 in. fuel rail kits and, of course, are branded with the Holley Sniper EFI logo. Budget and performance go hand-in-hand when it comes from Holley in the form of their Sniper EFI fabricated intakes. Order the model and options recommended for your make/engine application.
