BluePrint Engines Chev 396 Small Block 485HP Stroker Base Crate Engine BP3961CT

BluePrint Engines Chev 396 Small Block 485HP Stroker Base Crate Engine BP3961CT
BluePrint Engines 396CI Stroker Crate Engine | Small Block GM Style | Longblock | Aluminum Heads | Roller Cam
HP Torque: 491 HP / 509 FT LBSCompression Ratio: 10.4:1Aluminum HeadsHydraulic Roller CamForged CrankForged Pistons
BLOCK:
NEW BluePrint Cast Iron BlockManufactured and Machined in the USA!Align honed main bearing boreCylinders honed on computer controlled machine to within .0002 straightness and roundnessCylinders are sonic tested for thickness4-Bolt Main4.000" Bore1-Piece Rear Main SealMech fuel pump provision: YesPassenger Side Dipstick
Drilled and tapped for clutch linkage
ROTATING ASSEMBLY:
New BluePrint Forged Crankshaft3.875 " StrokeForged I-beam 6.000" connecting rodsForged PistonsInternal Front/ External Rear
CYLINDER HEADS:
BluePrint Aluminum Cylinder Heads - HP810364cc chamber2.08" intake/1.60" exhaust valves220cc intake/67cc exhaust runners
CAM SPECS:
Cam Type: Roller.544 Intake .555 Exhaust230 Intake / 236 Exhaust duration@ .050, 110 0 lobe separation angle
IGNITION TIMING:
34 degrees total at 3500 RPM
ALSOINCLUDES:

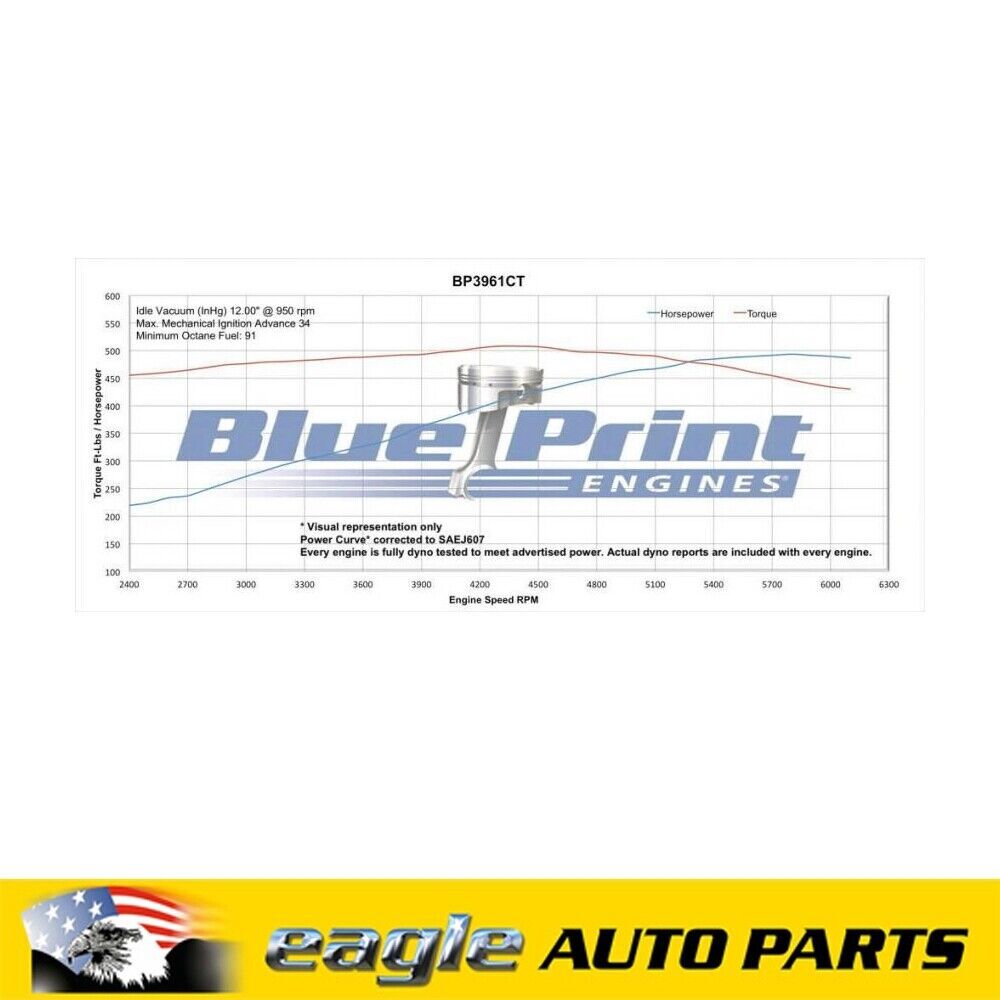

Valve covers, oil pan and timing coverDyno test results shipped with engine
WARRANTY:
