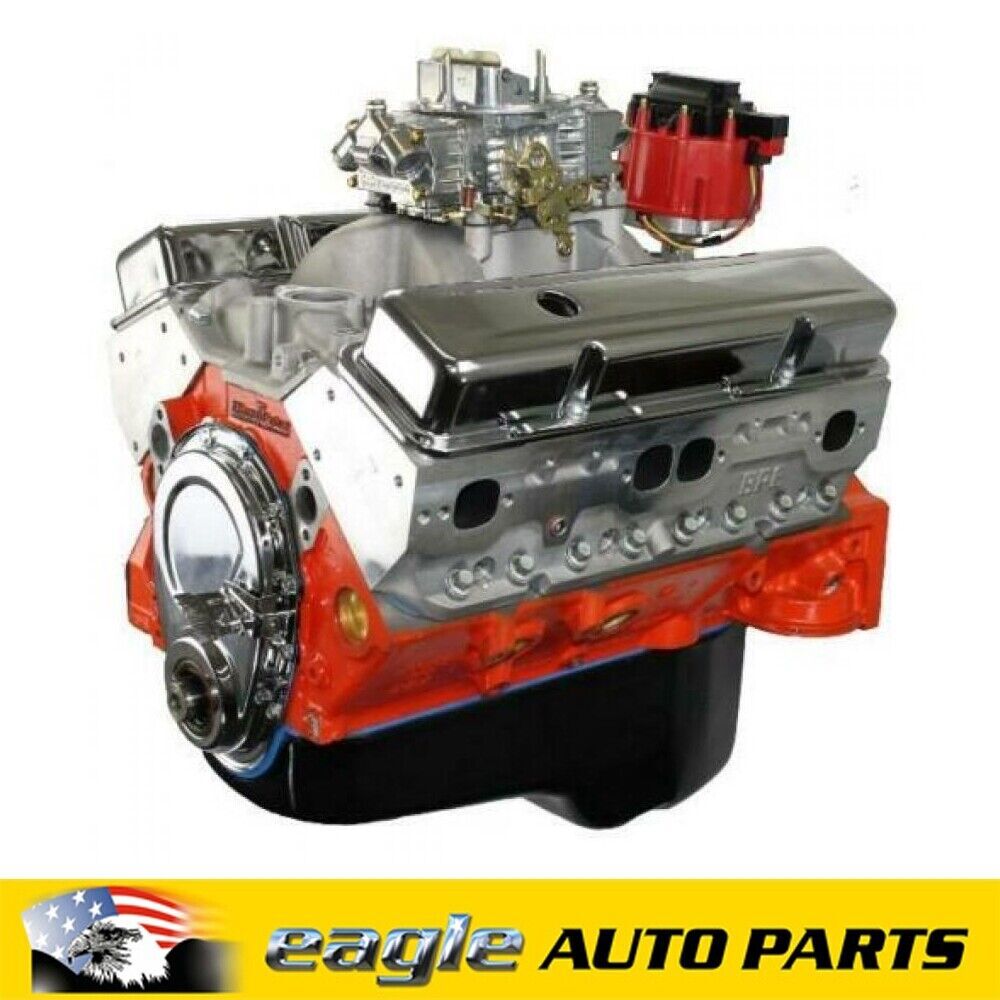

BluePrint Engines Chev 400 , 508HP Dressed Long Block Crate Engine # BP4002CTC1
by BLUEPRINT
# BP4002CTC1
Only 10 left!
AU $14,950.00
- In Stock
- In Stock
BluePrint Engines Chev 400 , 508HP Dressed Long Block Crate Engine # BP4002CTC1
BluePrint Engines Chev 400 , 508HP Dressed Long Block Crate Engine BP4002CTC1
HP Torque: 508 HP / 473 FT LBSCompression Ratio: 10.3:1Aluminum HeadsHydraulic Roller CamForged CrankForged Pistons
BLOCK:
NEW BluePrint Cast Iron BlockManufactured and Machined in the USA!4-Bolt Main4.125" Bore1-Piece Rear Main SealMech fuel pump provision: YesPassenger Side Dipstick
Drilled and tapped for clutch linkage
ROTATING ASSEMBLY:
New BluePrint Forged Crankshaft3.750" StrokeOEM type 5.700" connecting rods w/ 150,000 psi boltsForged PistonsInternal Front/ External Rear
CYLINDER HEADS:
BluePrint Aluminum Cylinder Heads - HP810364cc chamber2.08" intake/1.60" exhaust valves220cc intake/67cc exhaust runners
CAM SPECS:
Cam Type: Roller.555 Intake .576 Exhaust236 Intake / 242 Exhaust duration@ .050 - 110 0 lobe separation
IGNITION TIMING:
10-160 inital and total timing 32-340 at 3500 RPM
ALSO INCLUDES:
Intake Manifold dual plane, satin aluminum850cfm Carburetor

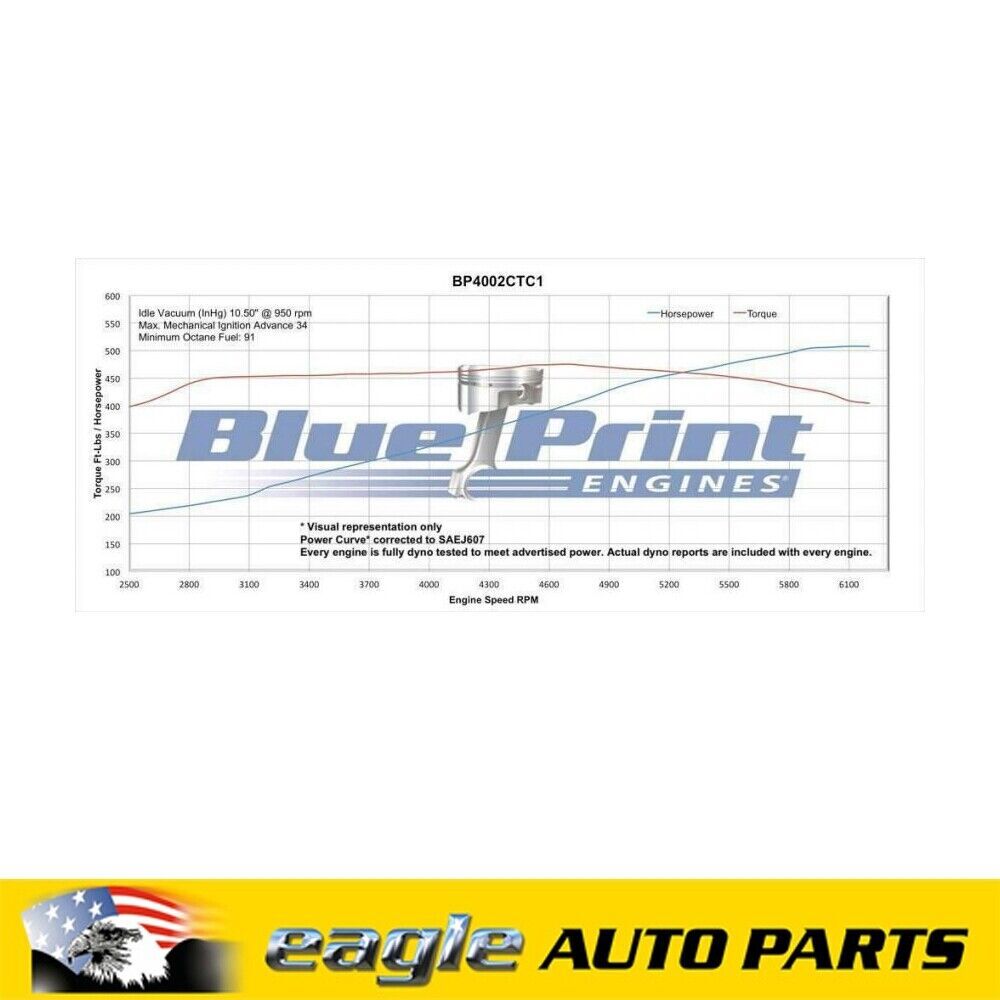

DistributorValve covers, oil pan and timing coverDyno test results shipped with engine
