New 350CI Crate Engine | Base Dressed Longblock | Aluminum Heads | Roller Cam | Fuel Injection

• HP & Torque: 390 HP / 410 FT LBS
• Compression Ratio: 9.2:1
• Aluminum Heads
• Hydraulic Roller Cam
• Cast Iron Crankshaft
• Hypereutectic Pistons

BLOCK:

• NEW BluePrint Cast Iron Block
• Manufactured and Machined in the USA!
• 4-Bolt Main
• 4.000" Bore
• 1-Piece Rear Main Seal
• Mech fuel pump provision: Yes
• Passenger Side Dipstick
• Drilled and tapped for clutch linkage

ROTATING ASSEMBLY:

• Cast Iron Crankshaft
• 3.480" Stroke
• Forged 5.700" connecting rods
• Hypereutectic pistons
• Internal Front/ External Rear engine balance

CYLINDER HEADS:

• BluePrint Aluminum Cylinder Heads - H8002K
• 64cc chamber
• 2.02" intake/1.60" exhaust valves
• 195cc intake/75cc exhaust runners

CAM SPECS:

• Cam Type: Roller
• .495 Intake .502 Exhaust
• 220 Intake / 224 Exhaust duration
• @ .050 - 114 degree lobe separation

IGNITION TIMING:

• 32 Degrees Total at 3500 RPM

ALSO INCLUDES:

• Valve covers
• Oil pan
• Timing cover
• Aluminum intake
• HEI distributor
• EFI system

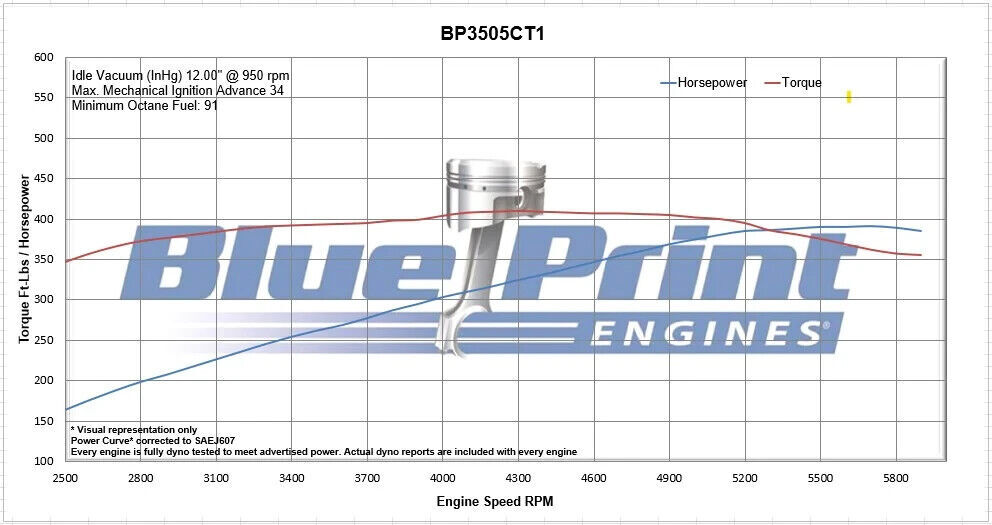

• Dyno test results shipped with engine
