BluePrint Engines Chrysler 408 , 465HP Dressed Crate Engine # BPC4085CTCD
by Blueprint
# BPC4085CTCD
Ring for availability
Ring for availability!
AU $18,500.00
- Out of Stock
- Out of Stock

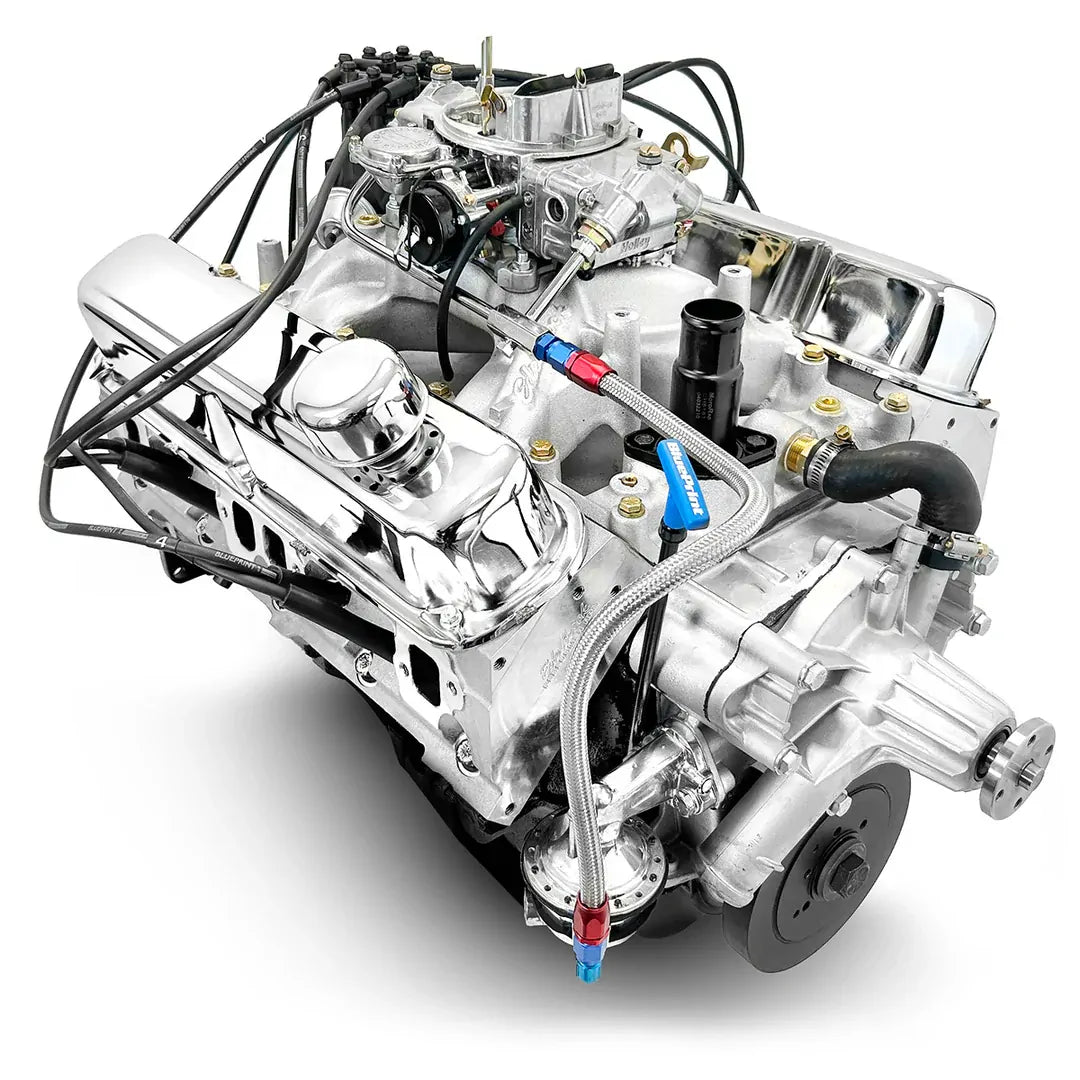

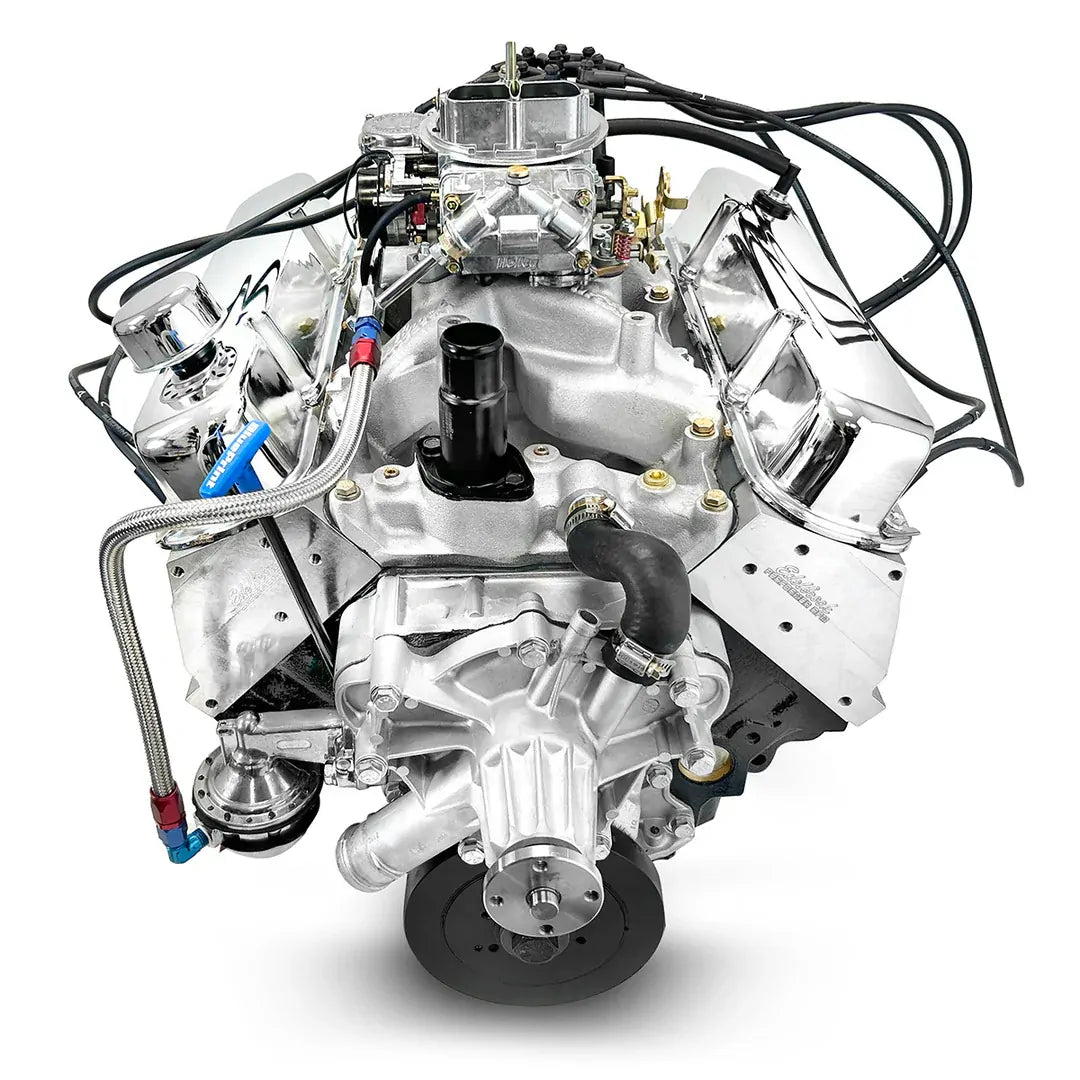

BluePrint Engines Chrysler 408 C.I.D. 465HP Dressed Crate Engine
- Edelbrock Intake Manifold
- Quick Fuel 750cfm Carburetor
- Proform Dress Up Kit
- Mopar Proform Chrome Alternator
- CVF Pulleys & Alternator Bracket
- Scat Balancer

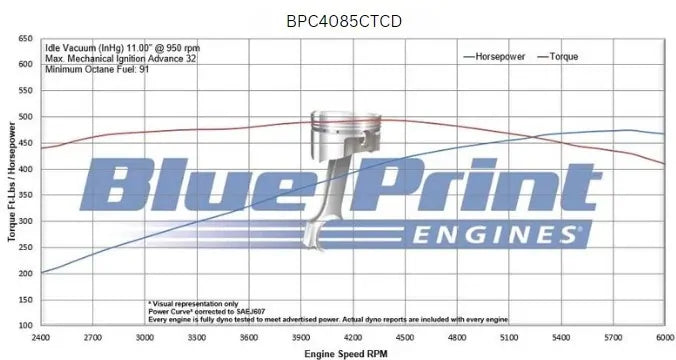

- HP & Torque: 465 HP / 494 FT LBS
Compression Ratio: 10:1
Aluminum Heads
Roller Cam
Cast Steel Crank
Forged Pistons
BLOCK:
- Hand picked seasoned Magnum block
Square and parallel decked
Align honed main bearing bore
Cylinders honed on computer controlled machine to within .0002 straightness and roundness
Cylinders are sonic tested for thickness
2-Bolt Main
4.000" Bored .040" over
2-Piece Rear Main Seal
Mech fuel pump provision: Yes
ROTATING ASSEMBLY:
- New Steel crankshaft
4.000" Stroke
Forged Magnum 6.123" connecting rods w/ 150,000 psi bolts
Forged pistons
External
CYLINDER HEADS:
- BluePrint Engines Assembled and Machined Edelbrock 61769 Casting
- Aluminum Magnum Pattern Cylinder Heads - 58cc chamber
- Aluminum Roller Rockers
- 2.02" intake/1.60" exhaust valves
176cc intake/75cc exhaust runners
CAM SPECS:
- Cam Type: Roller
.580 Intake .577 Exhaust
236 Intake / 242 Exhaust duration
@ .050 - 110 degree lobe separation
IGNITION TIMING:
- 34 degrees total at 4000 RPM
