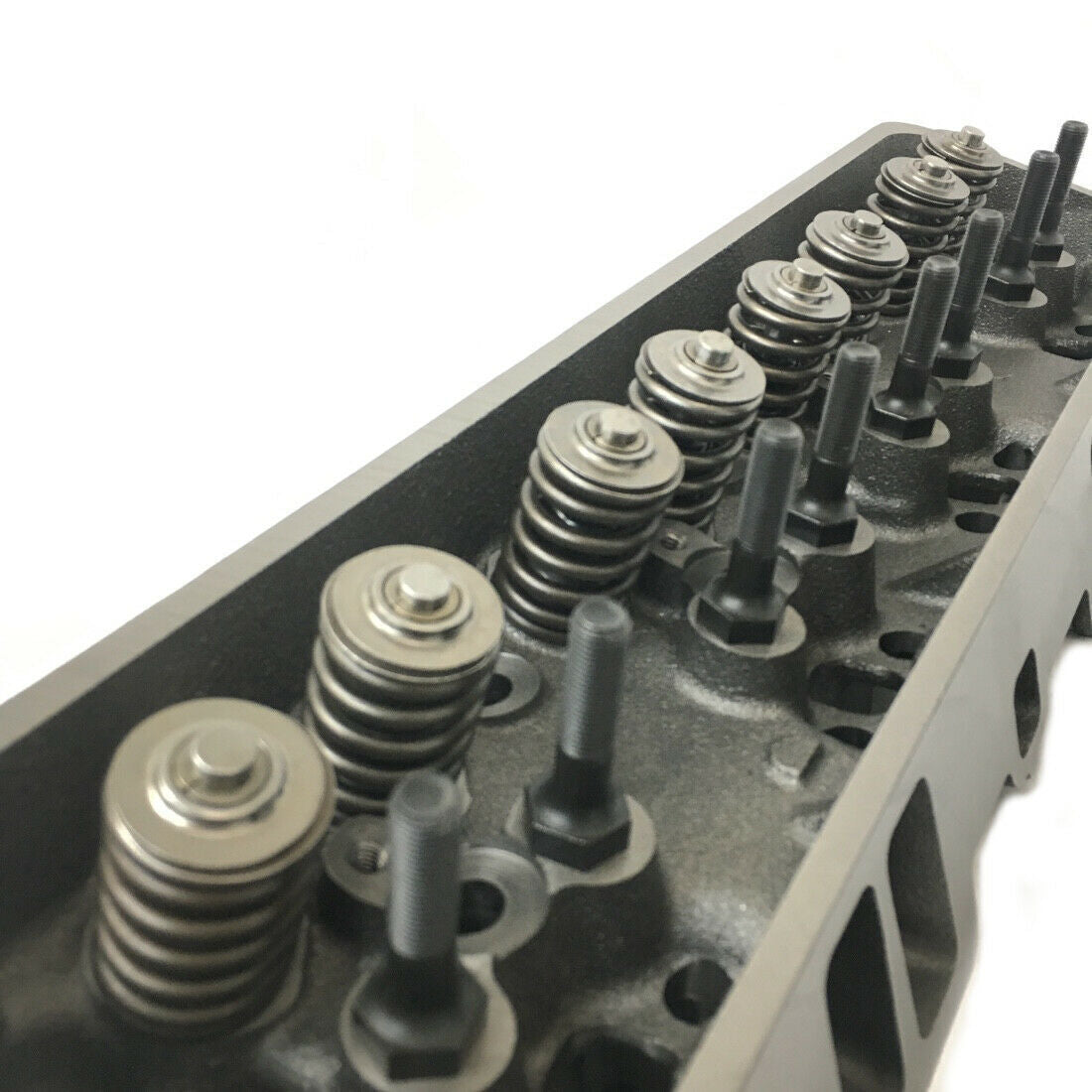

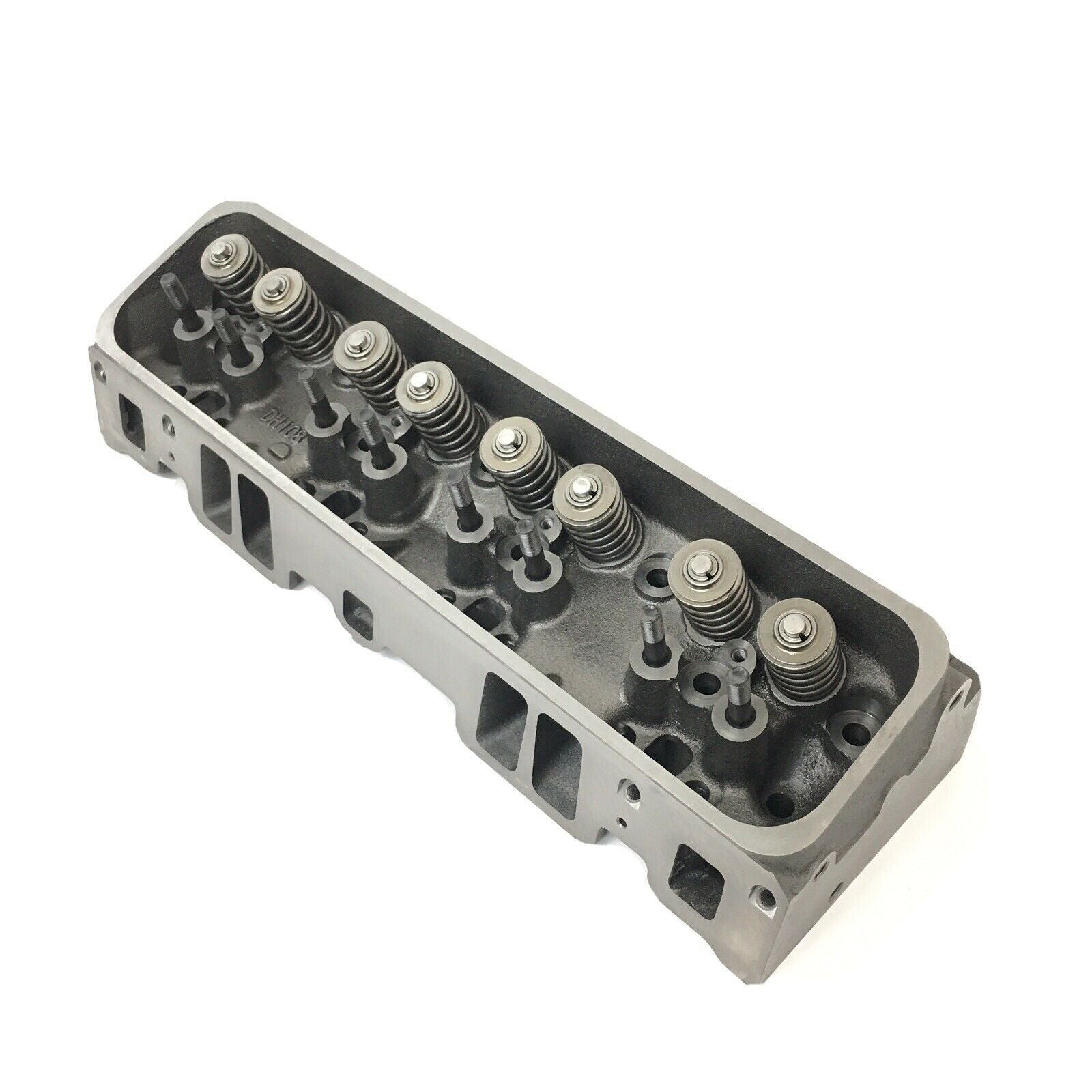

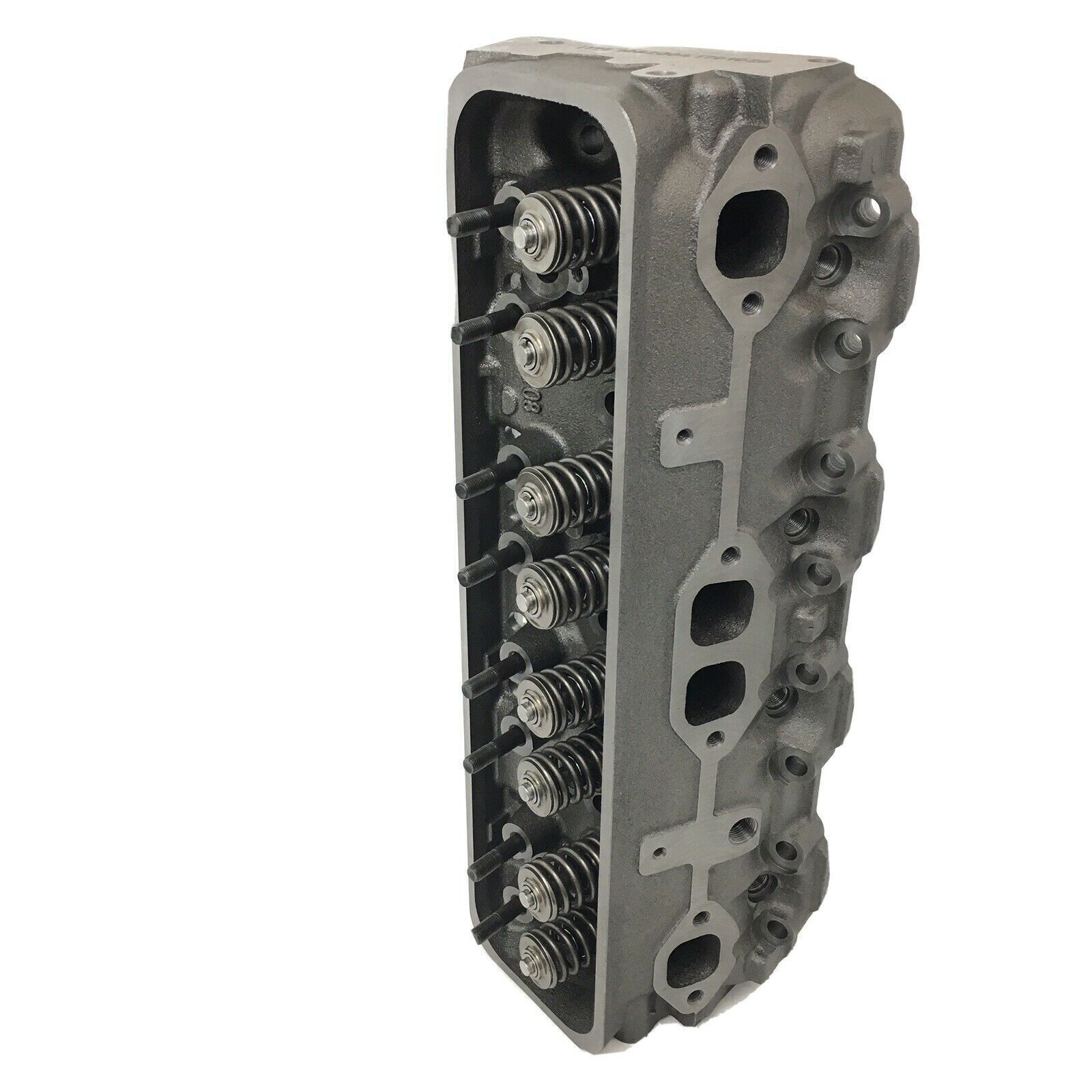

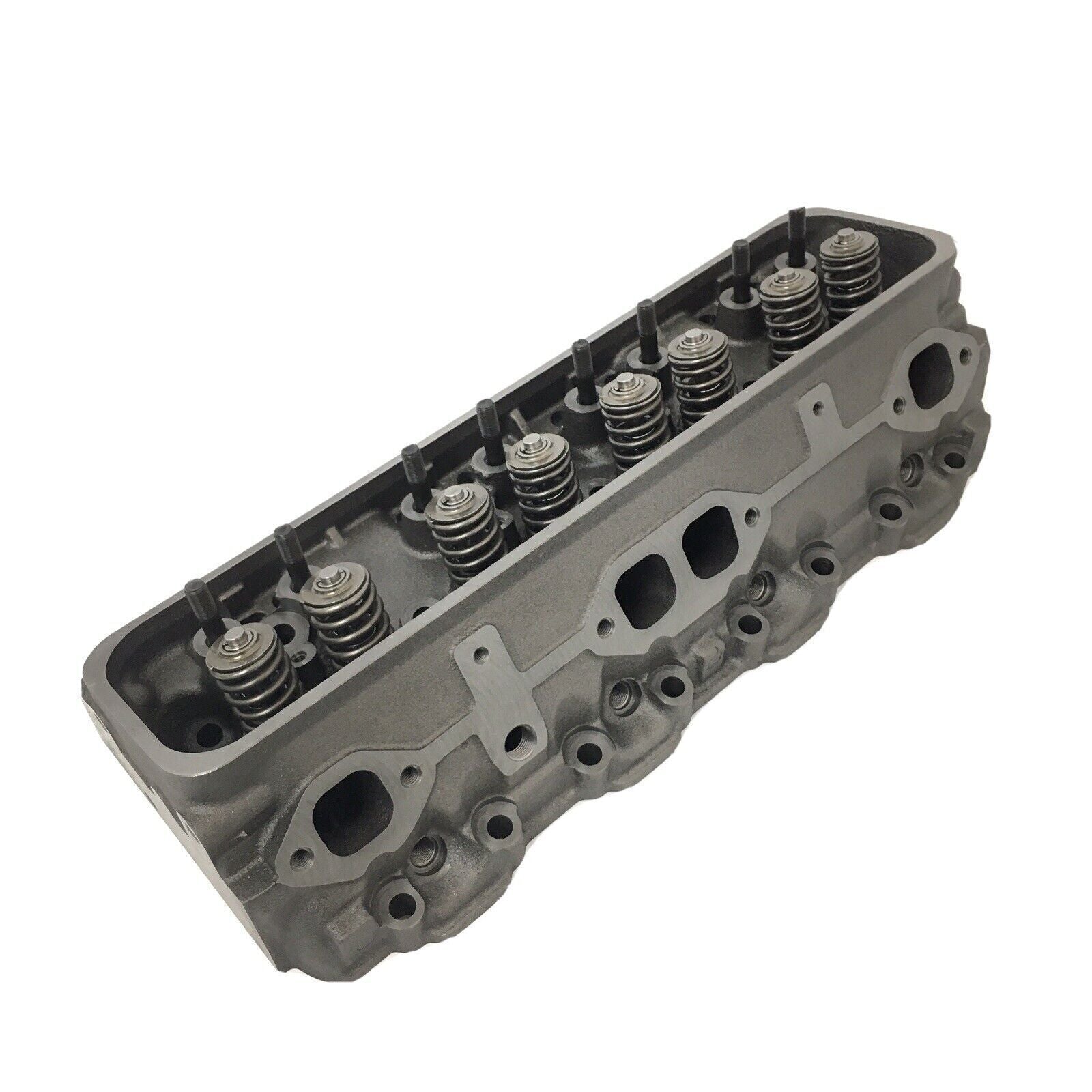

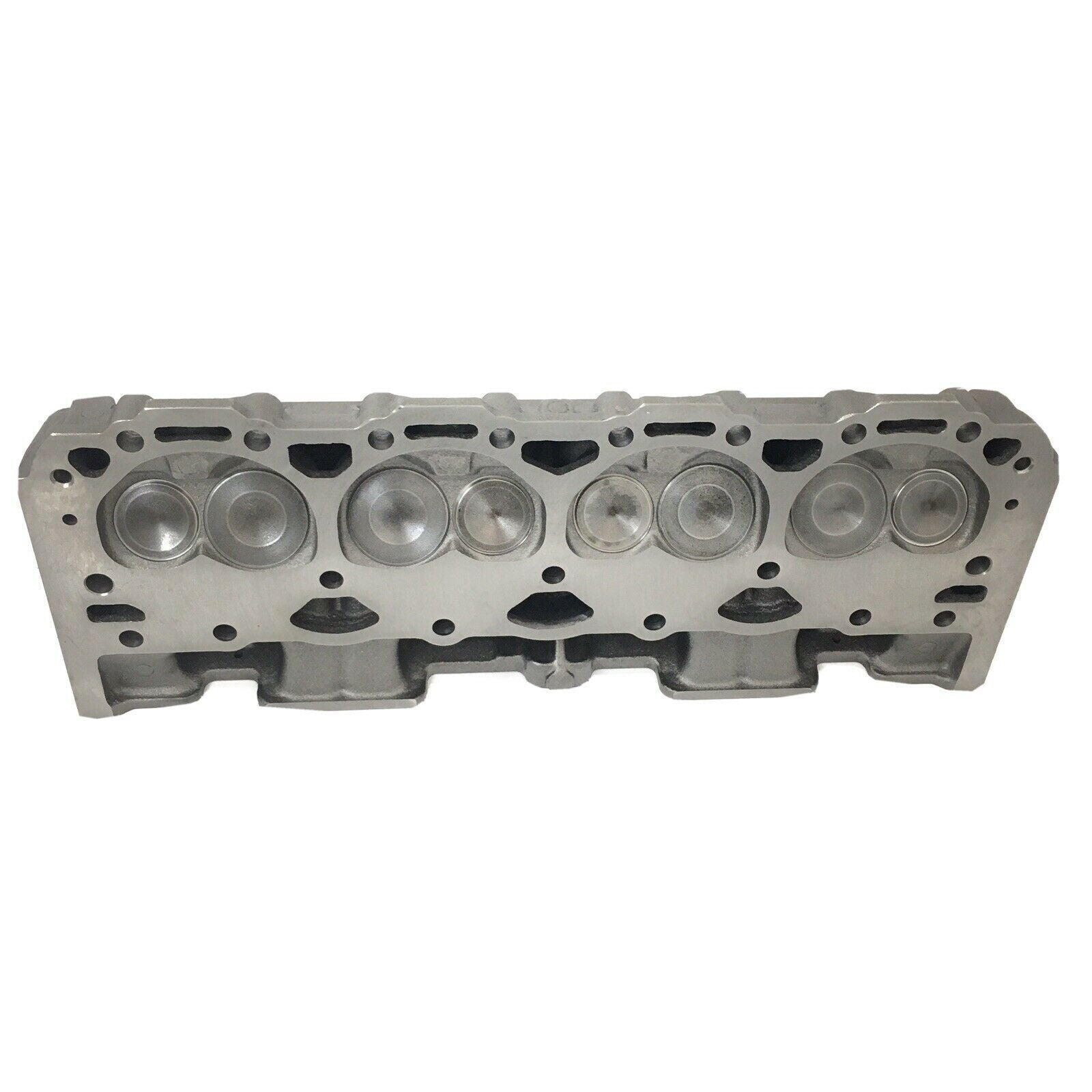

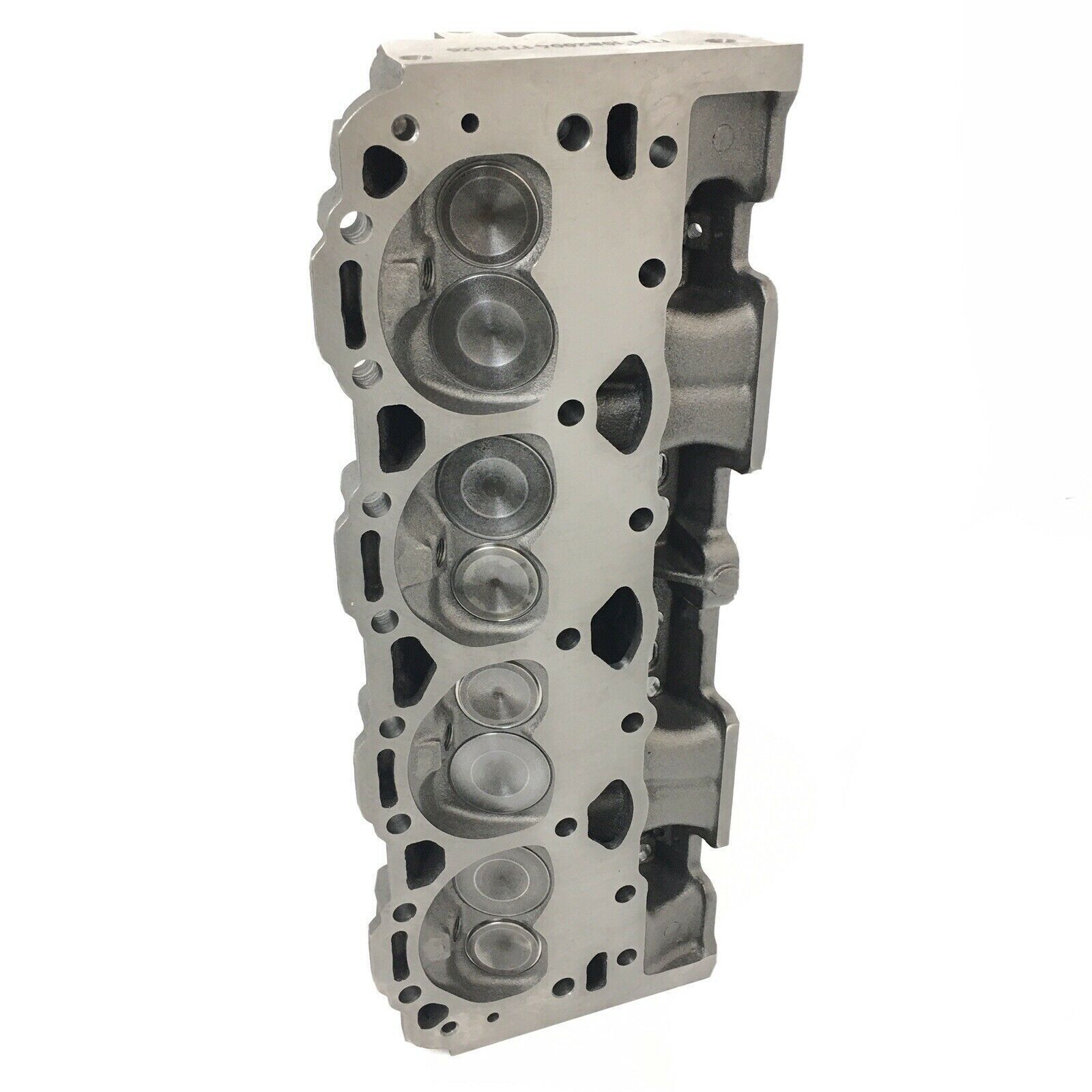

Chev 350 Vortec 5.7L GM Cast Iron Cylinder Head Casting 10239906 # 12691726
- Out of Stock
- Out of Stock
Cylinder Head, Vortec, Assembled, Cast Iron, 64cc Chamber, 170cc Intake Runner, Chevy, Small Block, Each
Combustion Chamber Volume (cc):
64
Intake Runner Volume (cc):
170cc
Cylinder Head Style:
Assembled
Cylinder Head Material:
Cast iron
Intake Port Shape:
Rectangular
Intake Valve Diameter (in.):
1.940 in.
CNC-Machined Combustion Chamber:
No
CNC-Machined Intake Runner:
No
CNC-Machined Exhaust Runner:
No
Intake Port Location:
Standard
Exhaust Port Shape:
Rectangular
Exhaust Port Location:
Standard
Spark Plug Style:
Straight
Intake Valves Included:
Yes
Exhaust Valves Included:
Yes
Exhaust Valve Diameter (in.):
1.500 in.
Valve Springs Included:
Yes
Maximum Valve Lift (in.):
0.475 in.
Camshaft Style:
Hydraulic roller
Damper Spring Included:
Yes
Number of Springs Per Valve:
Single
Retainers Included:
Yes
Retainer Material:
Steel
Locks Included:
Yes
Lock Style:
7 degree
Valve Stem Seals Included:
Yes
Valve Stem Seal Style:
Positive stop
Rocker Arm Studs Included:
Yes
Rocker Arms Included:
No
Rocker Arm Nuts Included:
No
Guideplates Included:
No
Valve Cover Mounting Style:
Centerbolt
Accessory Bolt Holes Drilled:
Yes
Valve Guides Included:
Yes
Valve Guide Material:
Manganese bronze
Valve Seats Machined:
Yes
Cylinder Head Color:
Natural
Steam Holes Drilled:
No
Oiling Style:
Through pushrod
Machined for O-Ring:
No
Heat Crossover:
No
Quantity:
Sold individually.
Notes:
Max Valve Lift as delivered is 0.475 in. and anything above requires machining of the valve guide bosses and checking valve seal-to-valve spring retainer clearance.
Chevrolet Performance Vortec Cylinder Heads
Chevrolet Performance cast iron Vortec cylinder heads will fit 1958 and later small block Chevy engines, and offer a 20 to 40 hp increase over earlier cast iron small block heads. Features include fast burn combustion chambers, and a high-velocity port design. They require the use of a Vortec-style intake and self-aligning rocker arms, and come complete with valves, springs, and retainers.
